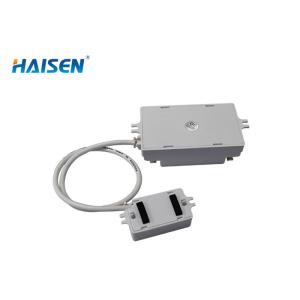

Separate Design 200W DALI Motion Sensor Plastic Casing Texture
Match The DALI Power Supply Push Dimming CE RoHS Certificate
Plastic Casing Motion Sensor
Features:
1.5.8G microwave motion sensor with dimming function.
2.Suitable for tri-proof light,ceiling light and battenlight.
3.Match the DALI supply and push dimming.
4.Detached version flexible installation.
5.Support remote control setting parameters.
6.5 years warranty.
Technical data:
| Model number | HDD02 |
| Operating voltage | 120-240VAC,50Hz/60Hz |
| Switching capacity | Max.200W (Control gear); Max.400W (Incandescent lamp) |
| Stand-by power | ≤1w |
| Control method | DALI dimming |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection area | 50%/100% |
| Hold time | 5s/30s/1min/10min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Stand-by period | 0s/30s/20min/+∞ |
| Stand-by dimming level | 10%/20%/30%/50% |
| Interfaces | 6-pole pluggable clamp temminal(L,N,PUSH,DALI)for 0.75-1.5mm² cable |
| Mounting height | 2.5-8m/8.2-26.25ft |
| Deteation range | Max. ø12m/45.93ft |
| Motion detection | 0.5–1.5m/s |
| Packing method | ①the bubble pack, ②paper flat, ③outer carton(400*300*236mm)with
drying agent(75pcs/carton,gross weight 7kg) |
| Detection angle | 30°-150° |
| Operating temperature | –20℃–+60℃ |
| IP rating | IP 20 |
| Warranty | 5 years |
On/Off Control Detection Area Hold Time Daylight Sensor
Stand-by dimming Stand-by Remote Control 5 Years Warranty
level Period
Dtection Area:
The fixture indicates teh maximun distance at the highest mounting
height with 100% sensitivity.
Typical installation height 2.5-6M.
Mechanical structure:
Support remote control setting parameters.
Dimensions:
Annotation:Motion sensor setting and dimming setting please refer
to remote control HD03R.HD02VR wire diameter 4mm,standard
versioncable length 485±10mm(can be customized)
Wiring diagram:
Setting:
Can also set the parameters with the following nine-digit dialing
code.
Detection area:
In this area,movement will be detected and able to trigger the
sensor.100% detection area is also known as the strong sensitivity.
Hold time:
The period of light keeping 100% brightness after moving objects
leave the detection area.
Daylight threshold:
Definition of the ambient brightness;only when the ambient
brightness is lower than the preset specific lux amount,the sensor
will be work;when it's preset as "disable",the sensor will work
everytime it detects motion regardness the ambient brightness.
Stand-by period:
The period of light keeping low output before it's completely
switched off,when it's preset as"∞",the light always keep at low
output if no movement in the detection area and doesn't turn off.
Stand-by period:
The definition of low output in the stand-by period.
Installation Method:
There are four ways to install the sepration head.
Application:
1.automatically ON/OFF function:
With sufficient daylight,even With insufficient daylight, After the
last detection and the
when motion detected,light when motion detected, present hold time
elapsed,
remains OFF. light ON. light OFF.
2.No daylight function:
When motion is detected, After people leave the After the last
detection and
the sensor will switch on the detection area,light remains the
present hold time
light to 100% brightness. 100% brightness within elapsed,light OFF.
hold time.
3.Function demo-dimable control/corridor function
With sufficient daylight,even With insufficient daylight, After the
last detection the light
when motion detected,light when motion detected, will be dimmed
down to the
remains OFF. light ON. stand-by dimming level
(10%,20%,30% or 50%)
after hold time.
After the stand-by period,
light OFF.
